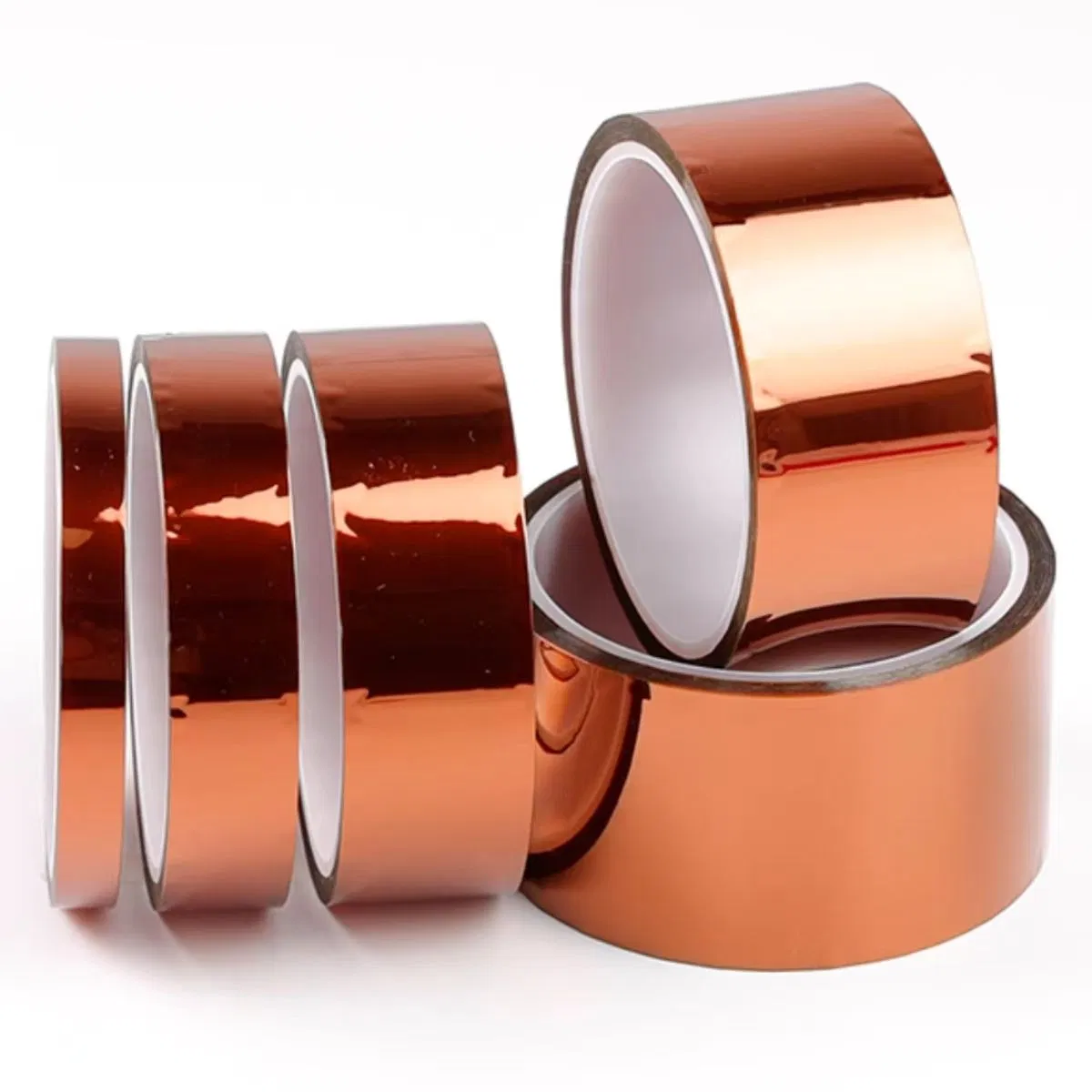

Gold Finger Tape for Insulation Wrapping of H-Class Motor and Transformer Coils in The Electronic and Electrical Industry

Basic Information

Model NO.0.05mm polyimide film tape

Heat ResistanceHigh Temperature (260ºC)

WaterproofYes

Base MaterialPolyimide

AdhesiveSilicone (Kl-9310b Glue)

ColorBrown

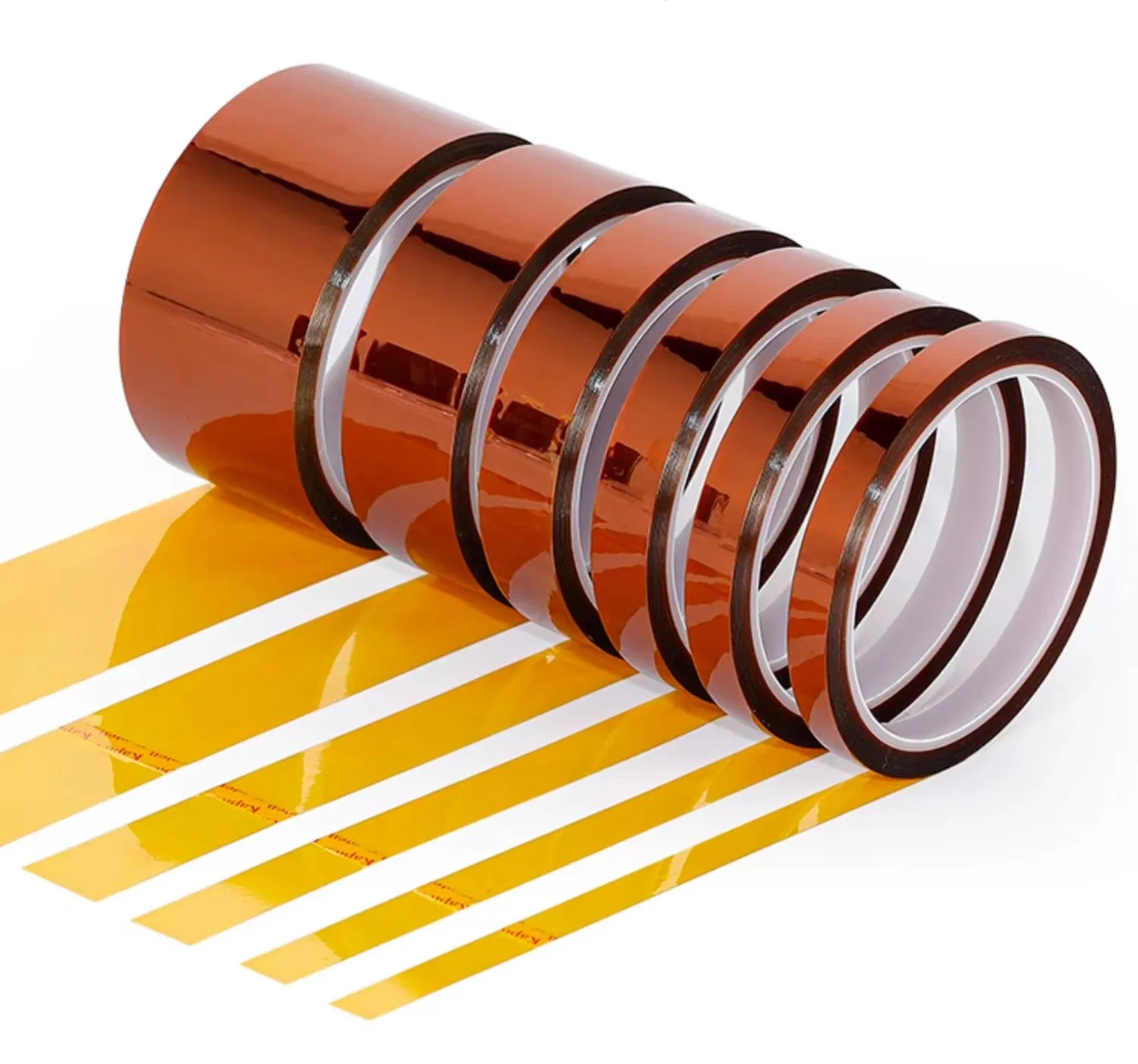

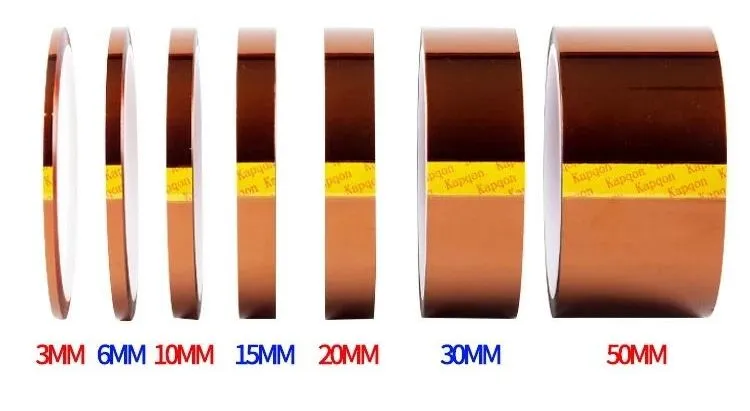

Width5mm - 500mm

Length33 - 200 Meters

Our Advantages

We offer full customization for length, width, and thickness. Various shapes including circular, square, bar, rounded rectangle, ellipse, trapezoid, and irregular shapes are available. We support CAD, PDF, or custom drawings for precision die-cutting.

With years of commitment to the double-sided tape and material die-cutting industry, we provide professional suggestions tailored to your specific application needs, especially for foam and high-temperature tape products.

Product Parameters

Item	Unit	Specification Value	Characteristic Value
Substrate	μm	25±3	25

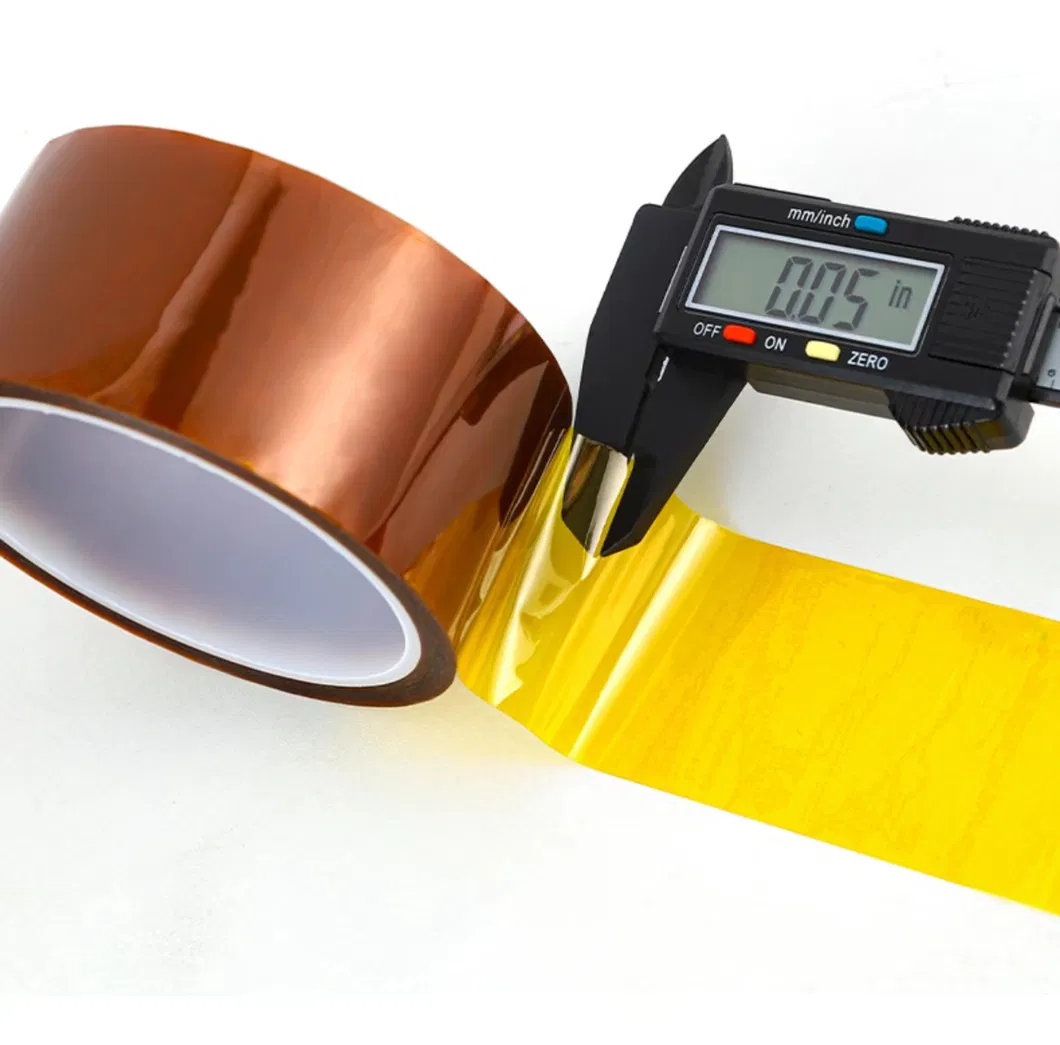

Total Tape Thickness	μm	50±3	50
Tape Width	mm	500±2	500
Length	m	≥33	33
Colour	--	Brown	Brown
Peel Force	g/25mm	400g-600g	500g
Heat-resistant Temperature	ºC	260 (30min)	No residual glue

Product Description

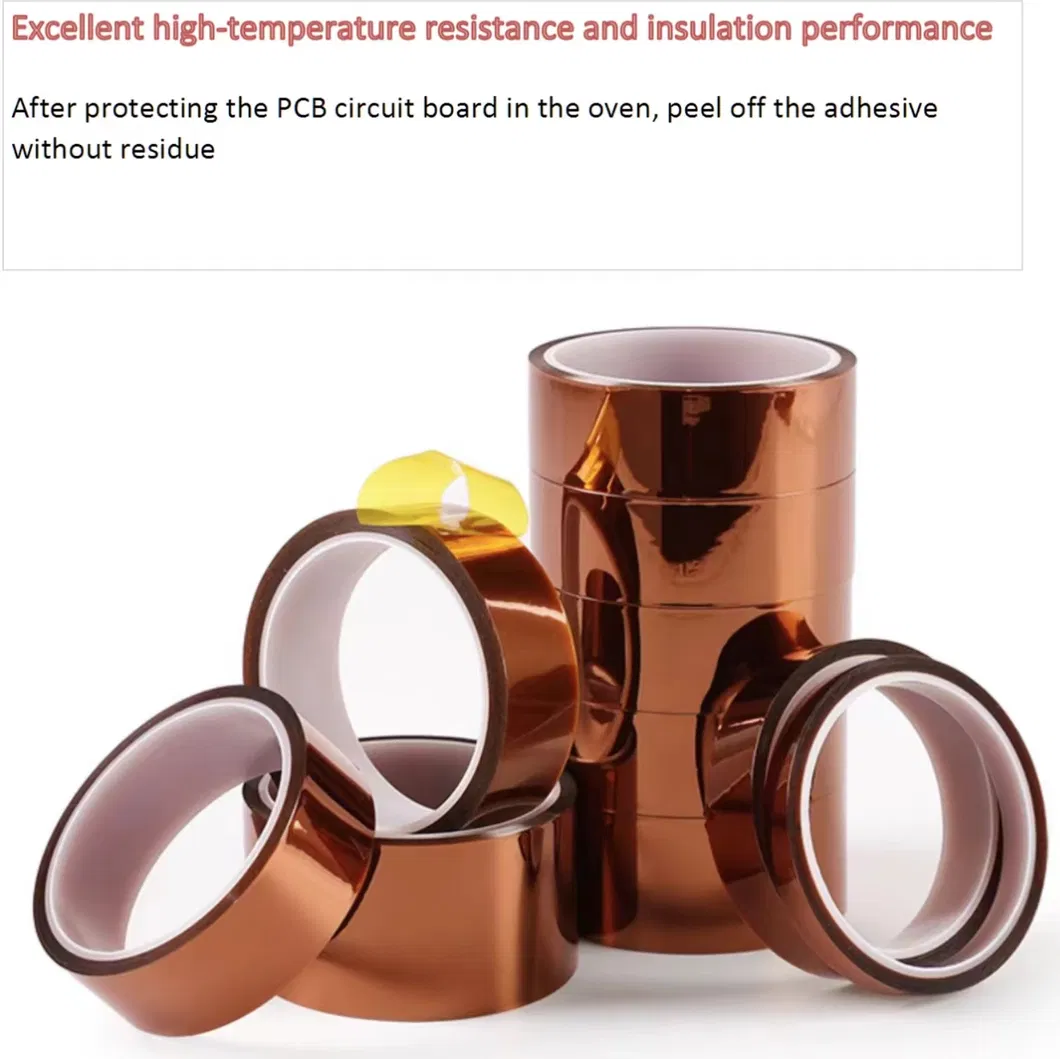

High temperature resistant silicone PI yellow single-sided tape uses polyimide as the base material, the most heat-resistant industrialized polymer material known as the "golden film". It offers high oil resistance, low dielectric loss, and excellent chemical stability.

This tape features strong adhesion, acid and alkali resistance, and low electrolysis. After removal, the surface remains clean without any residual glue. It is fully compliant with ROHS environmental protection and halogen-free standards.

Applications & Features

Electronics: Ideal for gold finger protection during reflow and wave soldering.
Insulation: Used for H-class or C-class insulation in motors, transformers, and lithium batteries.
Durability: Resistant to anti-voltage breakdown (5kw-50kw) and chemical erosion.
Advanced Tech: Widely used in aerospace, OLED lighting, solar cells, and mobile communications.

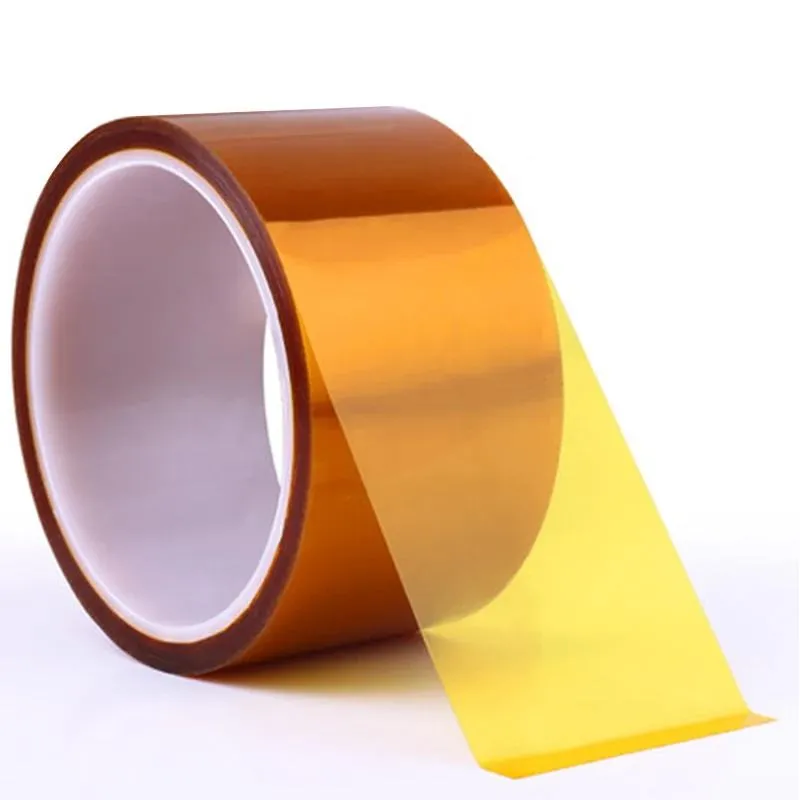

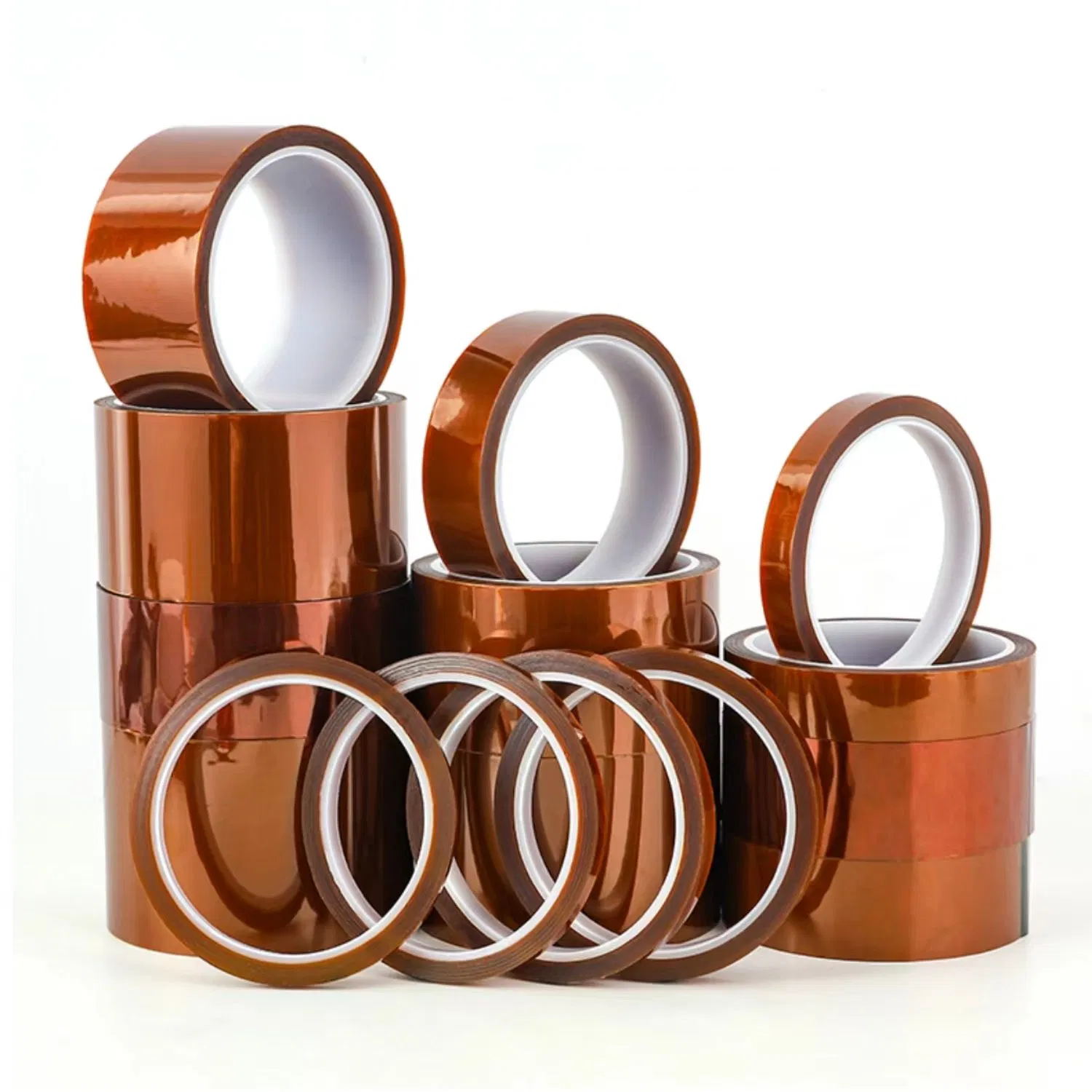

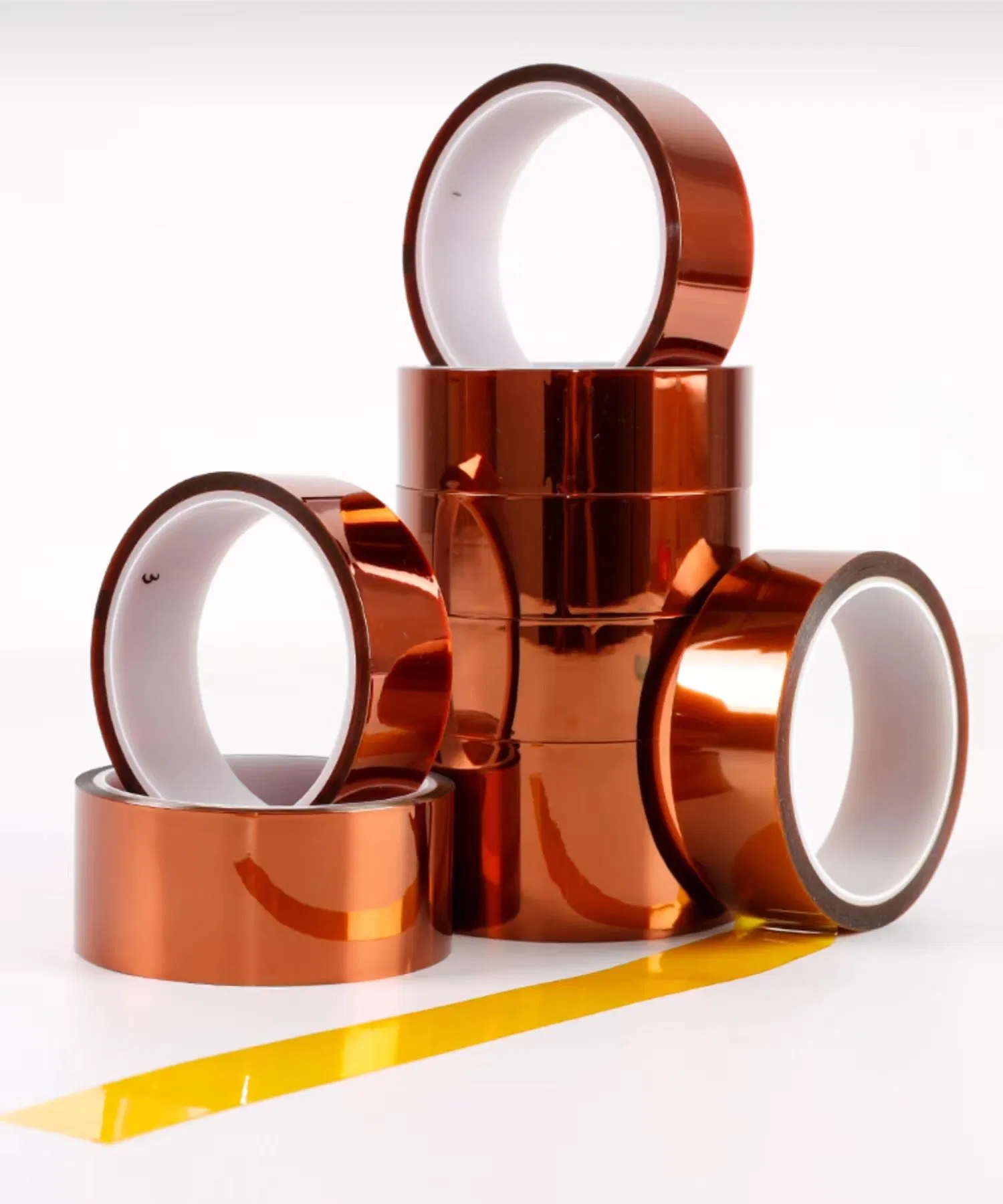

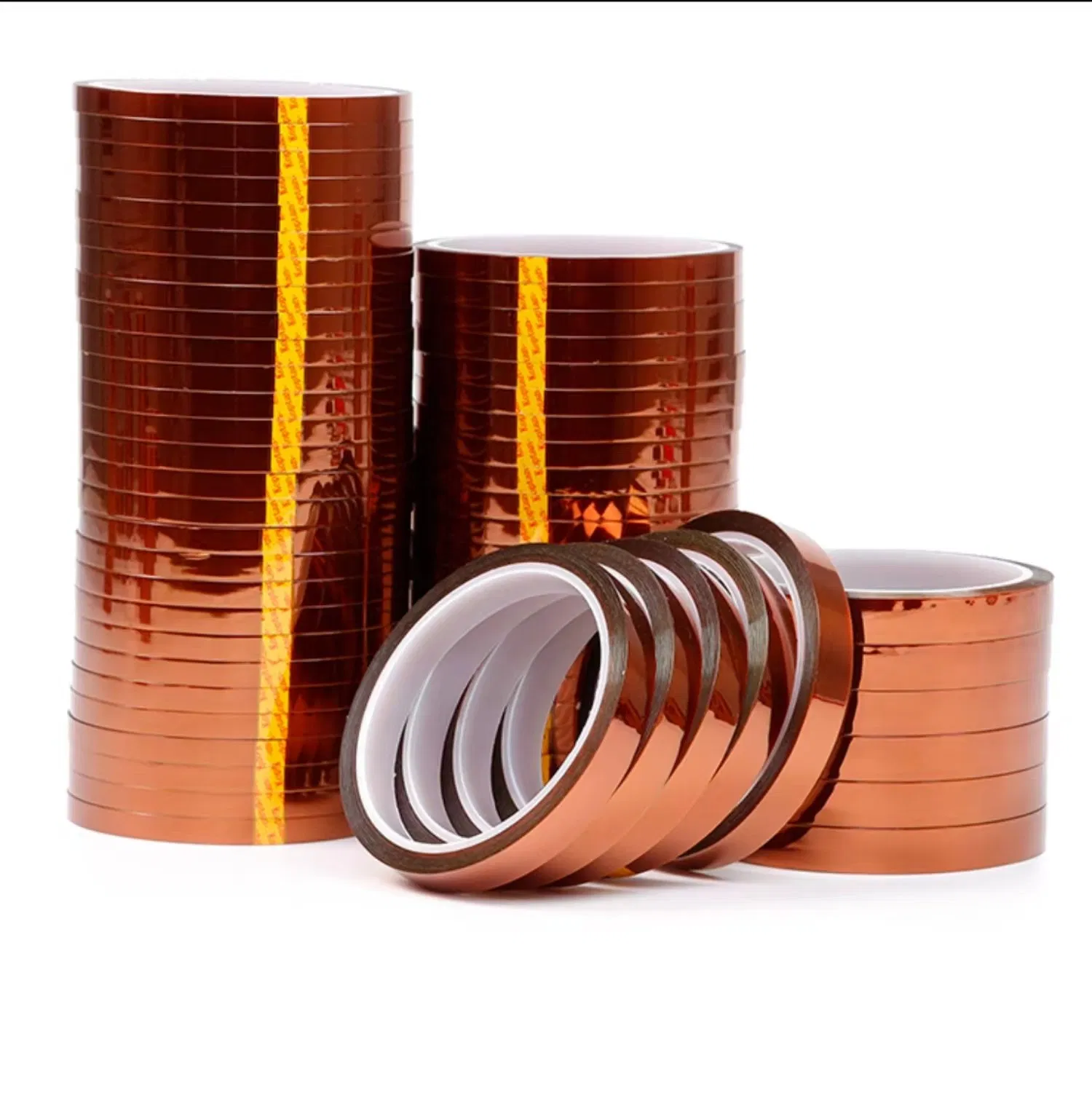

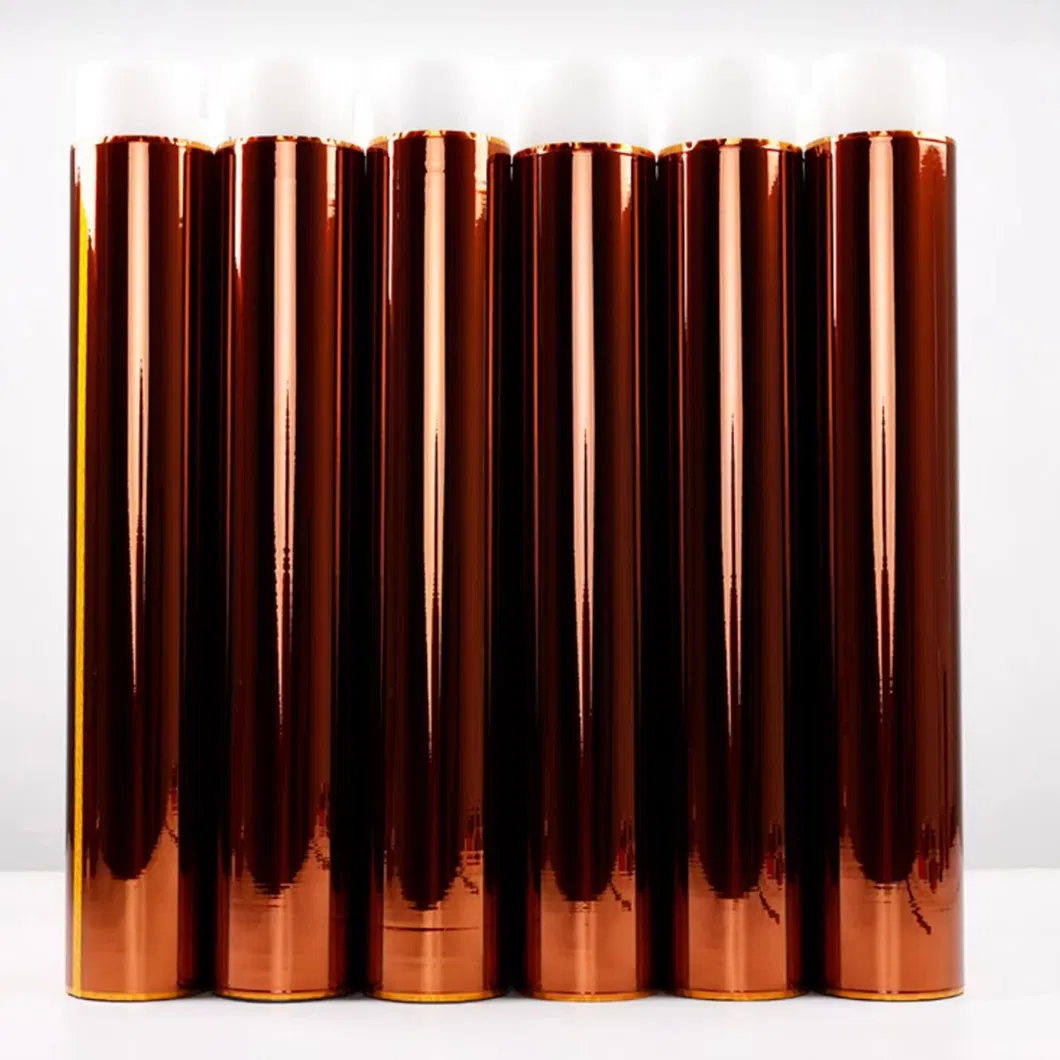

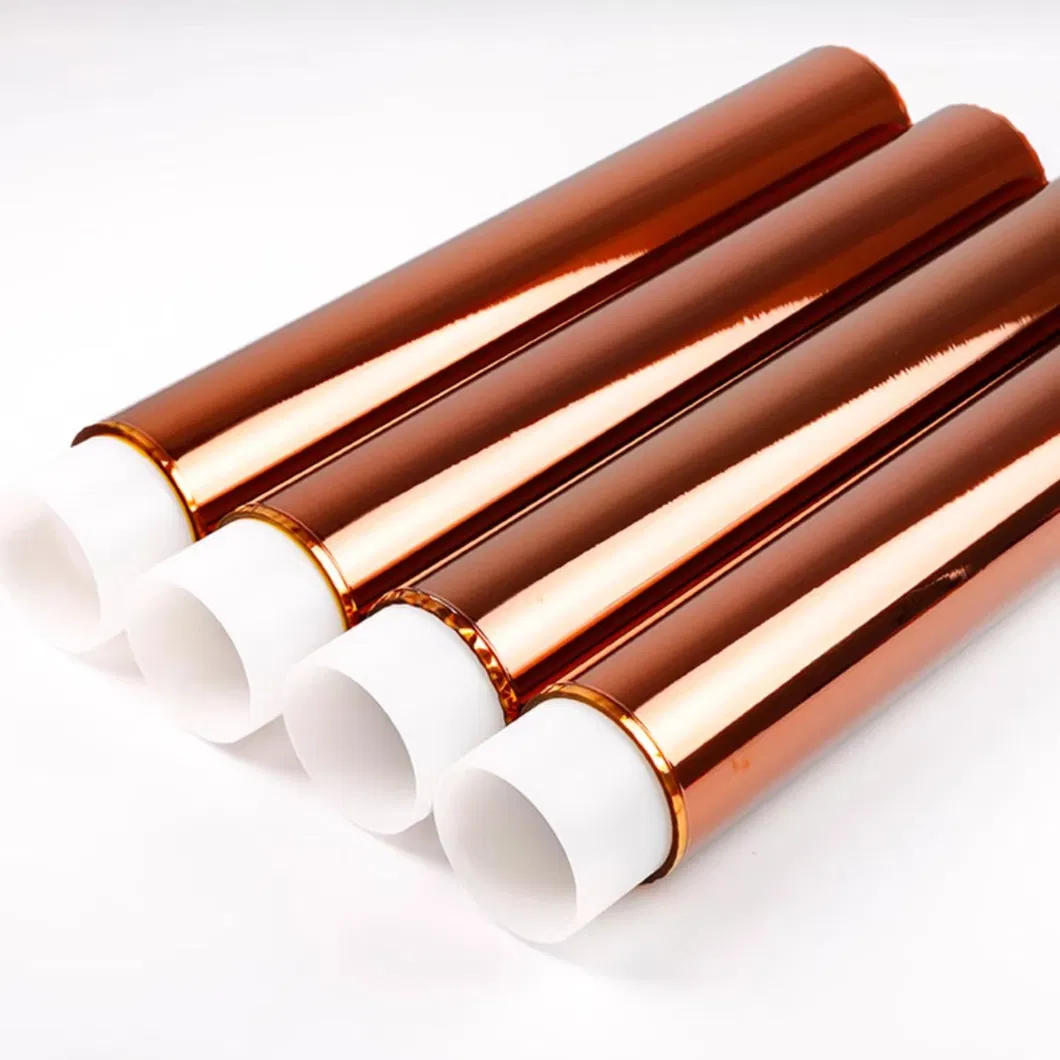

Detailed Photos

Packaging & Shipping

Packing: Standard packed in plastic bags, then secured in cartons or customized to your specific requirements.

Shipment: Orders are typically processed within 1 to 2 weeks. We support worldwide shipping via EMS, TNT, DHL, UPS, and FEDEX. Tracking numbers are provided immediately upon shipment.

Frequently Asked Questions

Are you a manufacturer?

Yes, we are a professional manufacturer with over 10 years of specialized experience in high-temperature tape and die-cutting materials.

Can I request free samples for testing?

Certainly. After discussing your specific requirements, we can provide free samples. Please note that shipping costs are covered by the buyer, which can be discounted on future bulk orders.

Do you support OEM and custom shapes?

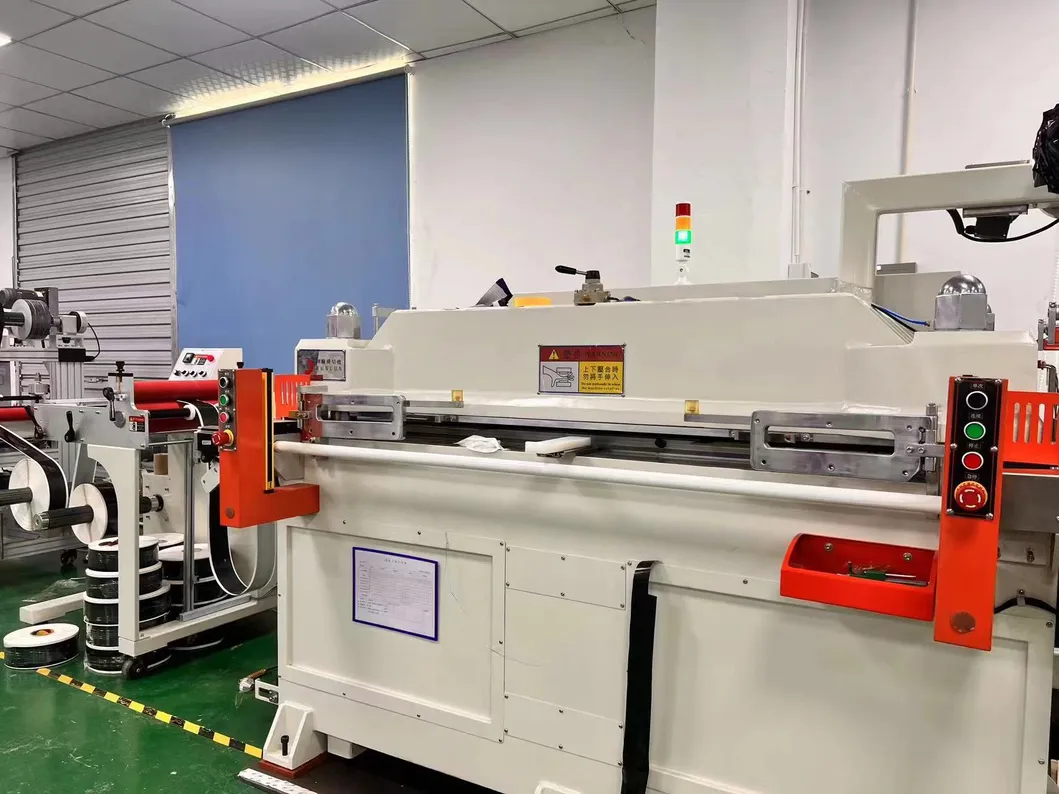

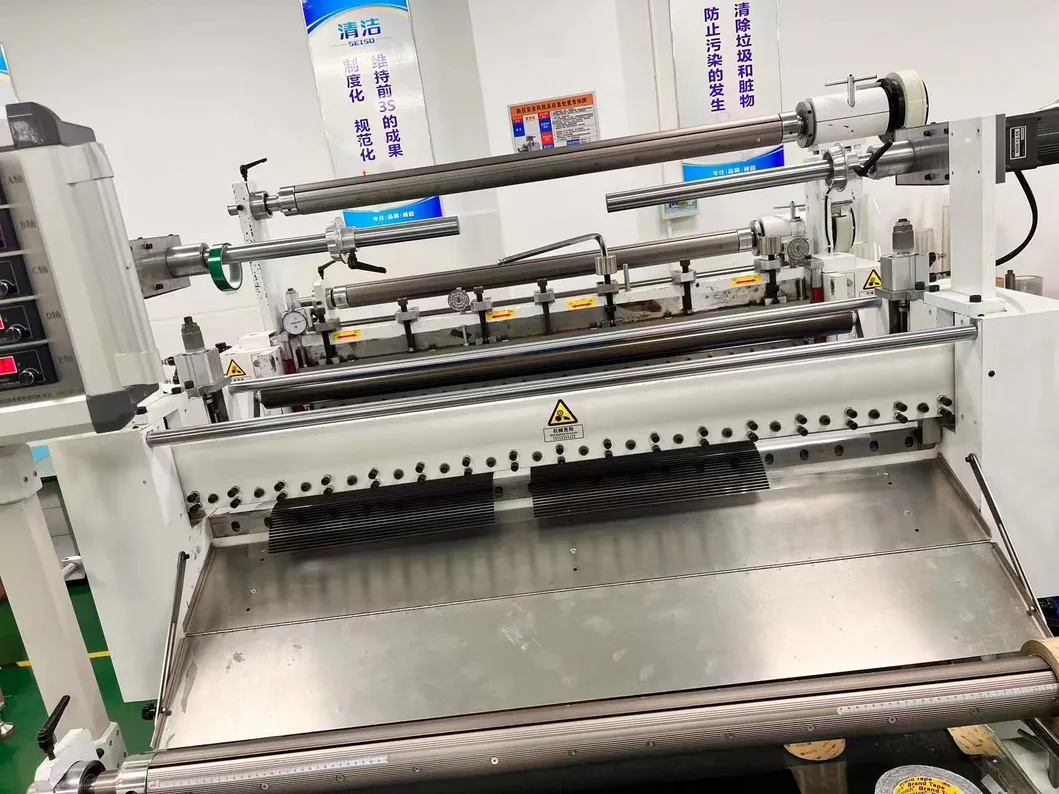

Yes, we support full OEM services. Our advanced die-cutting equipment allows us to produce precise shapes, offer sample making, and handle mass production based on your drawings.

What is the typical delivery time?

Delivery usually takes between 3 to 7 days, depending on the order volume and specific requirements. We confirm exact timelines once order details are finalized.

What is the maximum temperature resistance of the polyimide tape?

The tape can withstand a continuous temperature of 260ºC for 30 minutes without leaving any residual glue, and can reach up to 300ºC for short periods.

Is the tape resistant to chemicals?

Yes, the polyimide film and silicone adhesive are designed to resist acids, alkalis, and various solvents, making it ideal for harsh industrial environments.
