Orange Adhesive Textile Self-Closing Wrap High Voltage Use

Still deciding? Get samples of $ !
Order Sample

Product Description

📋

Basic Information

Model NO.LSW2102
IP RatingVW-1
UsageElectric Wire, HDMI Cable, Hose and Harness Protection
MaterialPet or Nylon
TypeSpiral Wrapping
ApplicationHarness Protection
OriginChina
HS Code39173100
📦

Packaging & Delivery

Package Size32.00cm * 31.00cm * 46.00cm
Gross Weight11.600kg
Capacity8,000,000 meters/month
🏭

Professional Manufacturer

We are a true manufacturer dedicated to the research, development, and manufacturing of sleeving products since 2006. Our products are widely applied across various industries, including automotive, rail transportation, wind power, and telecommunications electronics, and are exported to international markets such as Europe, America, Japan, and Southeast Asia.

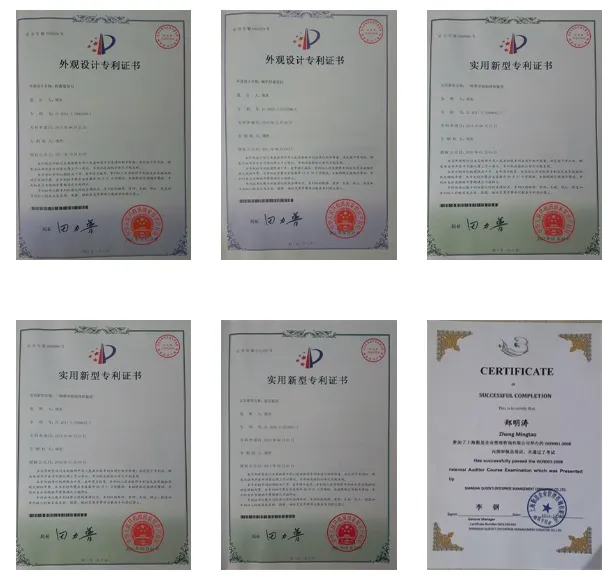

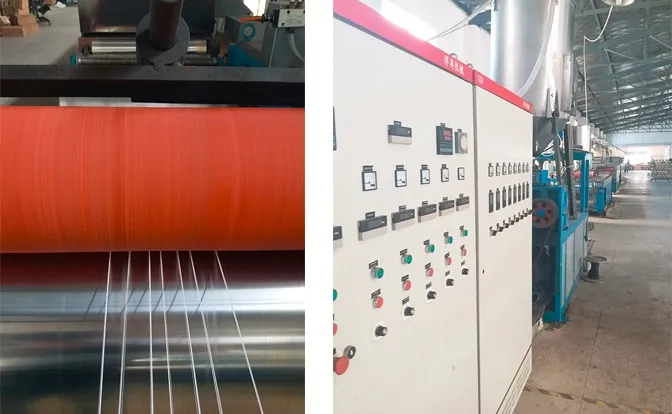

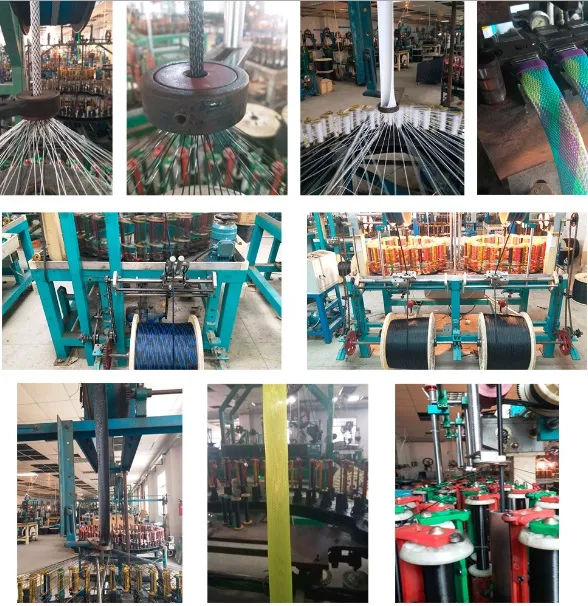

The facility has obtained system certifications for ISO 9001, IATF 16949, GJB 9001C, ISO 14001, and ISO 45001. Products have passed rigorous testing to industry standards including UL, GMW14327, EN 45545, ISO 6722, and SAE J2302. Current operations include 2 high-precision wire drawing production lines, 200 fully automatic high-speed braiding machines, 80 high-speed textile machines, and 20 high-precision forming and cutting production lines.

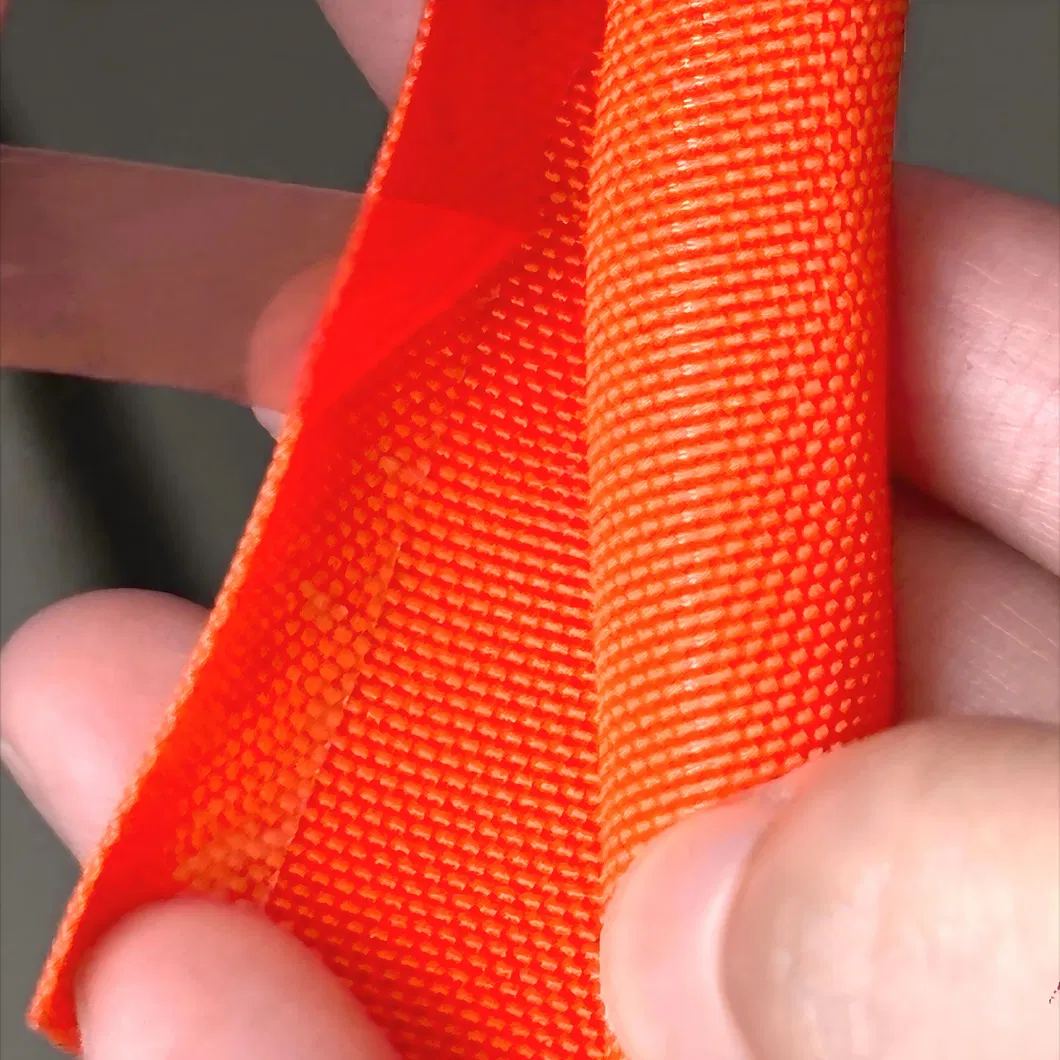

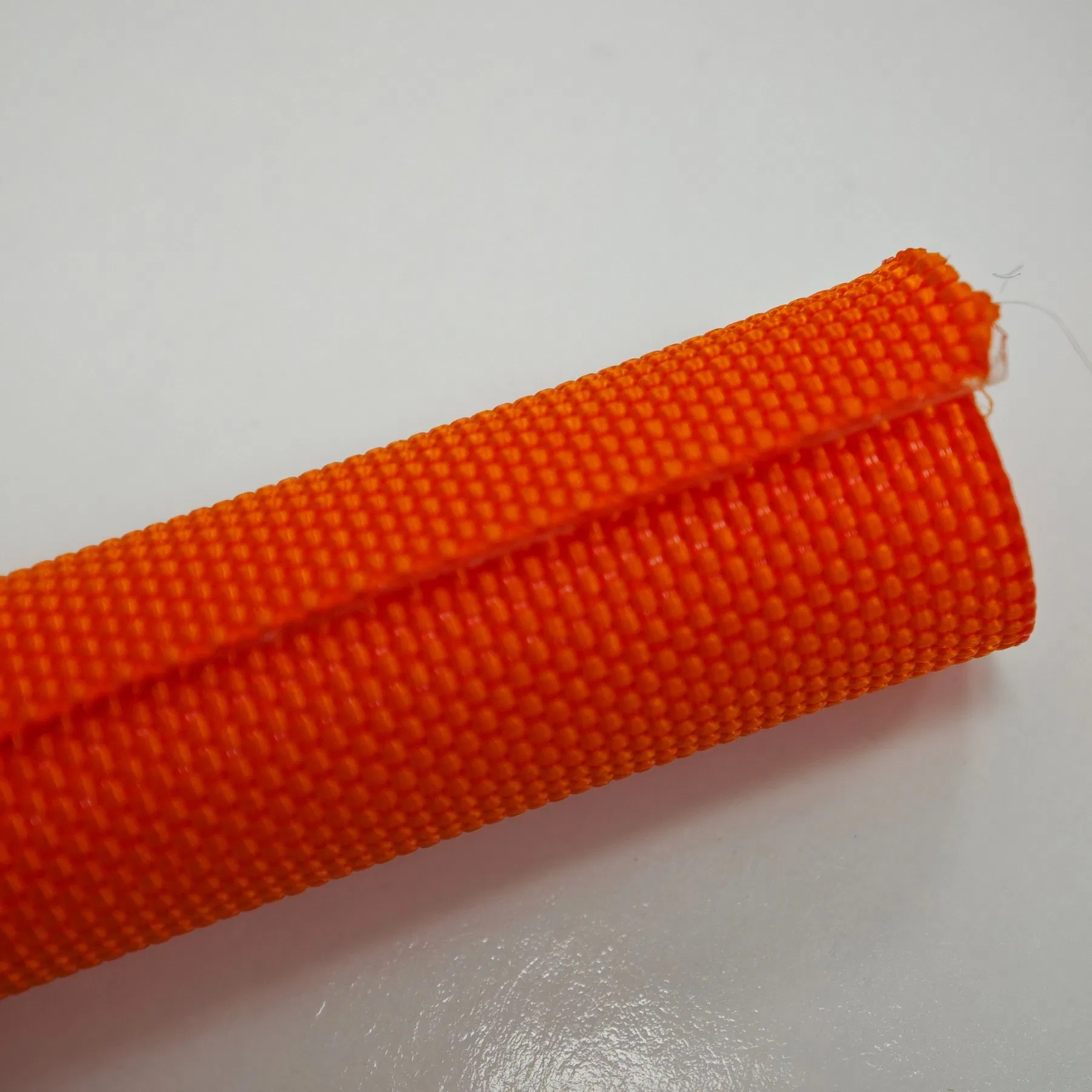

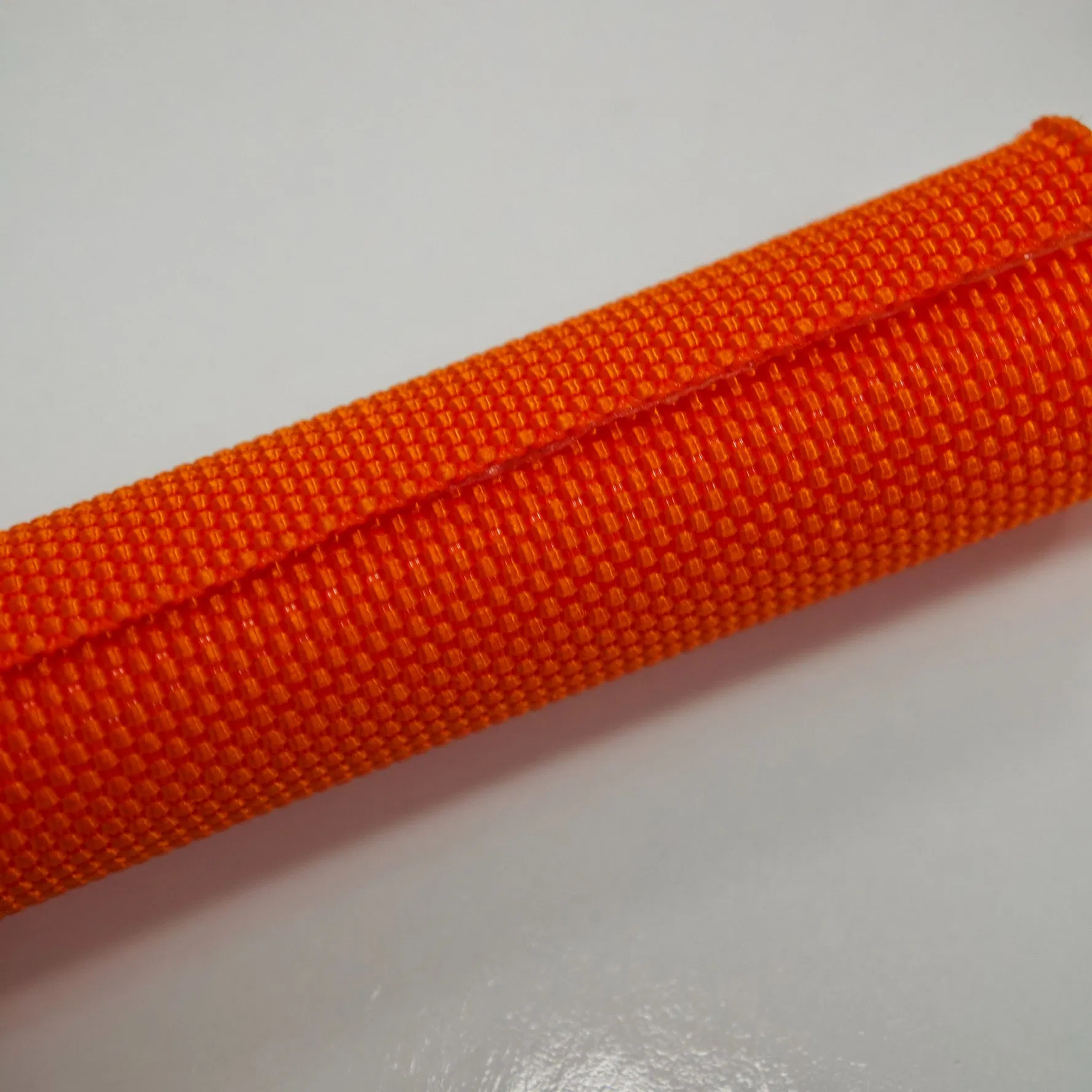

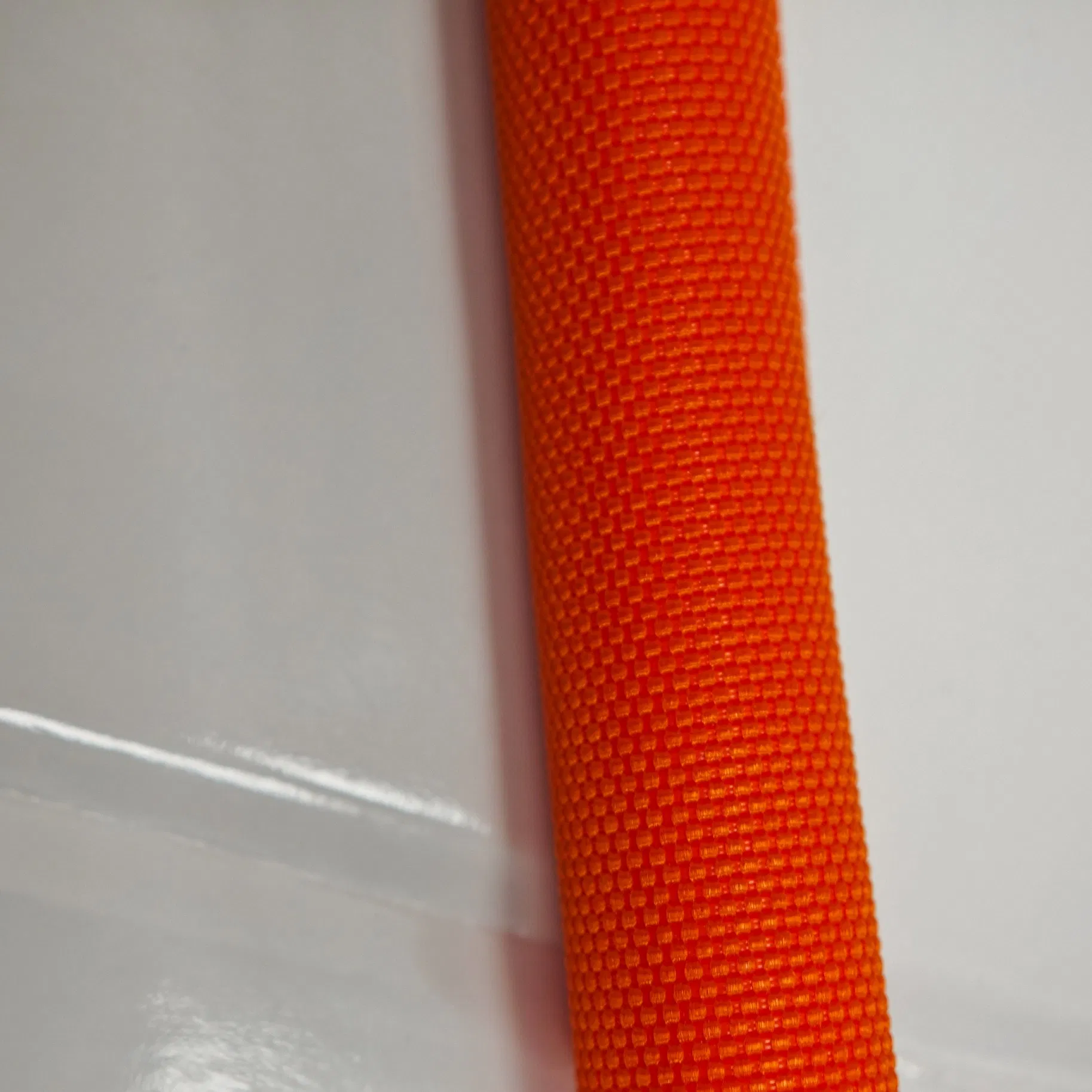

Orange Adhesive Textile Self-closing Wrap LSW2102

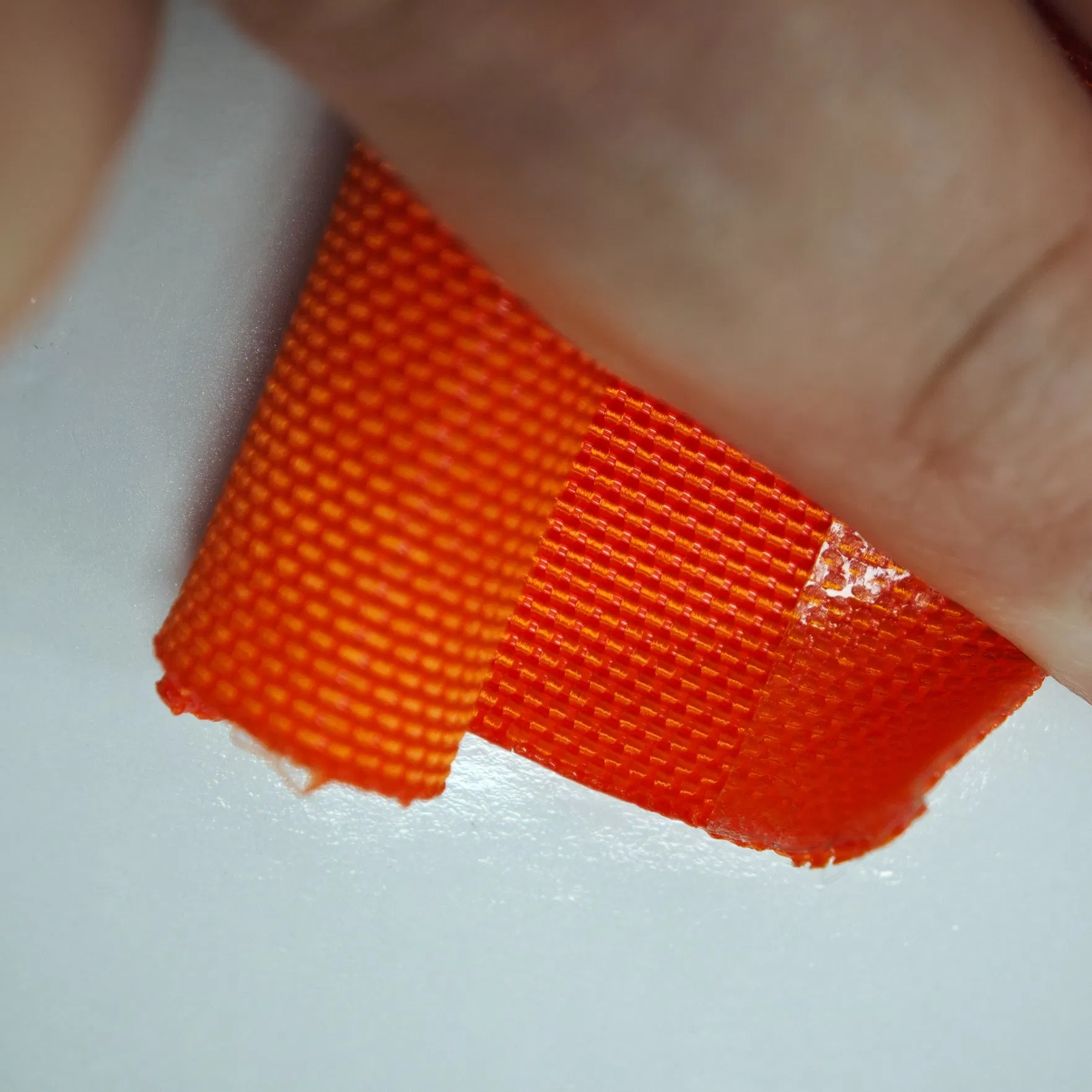

LSW2102 is made of polyester monofilaments and multifilaments, which are spun and then coated with glue. It is specifically designed for high-performance protection and identification.

🚀

Application & Main Features

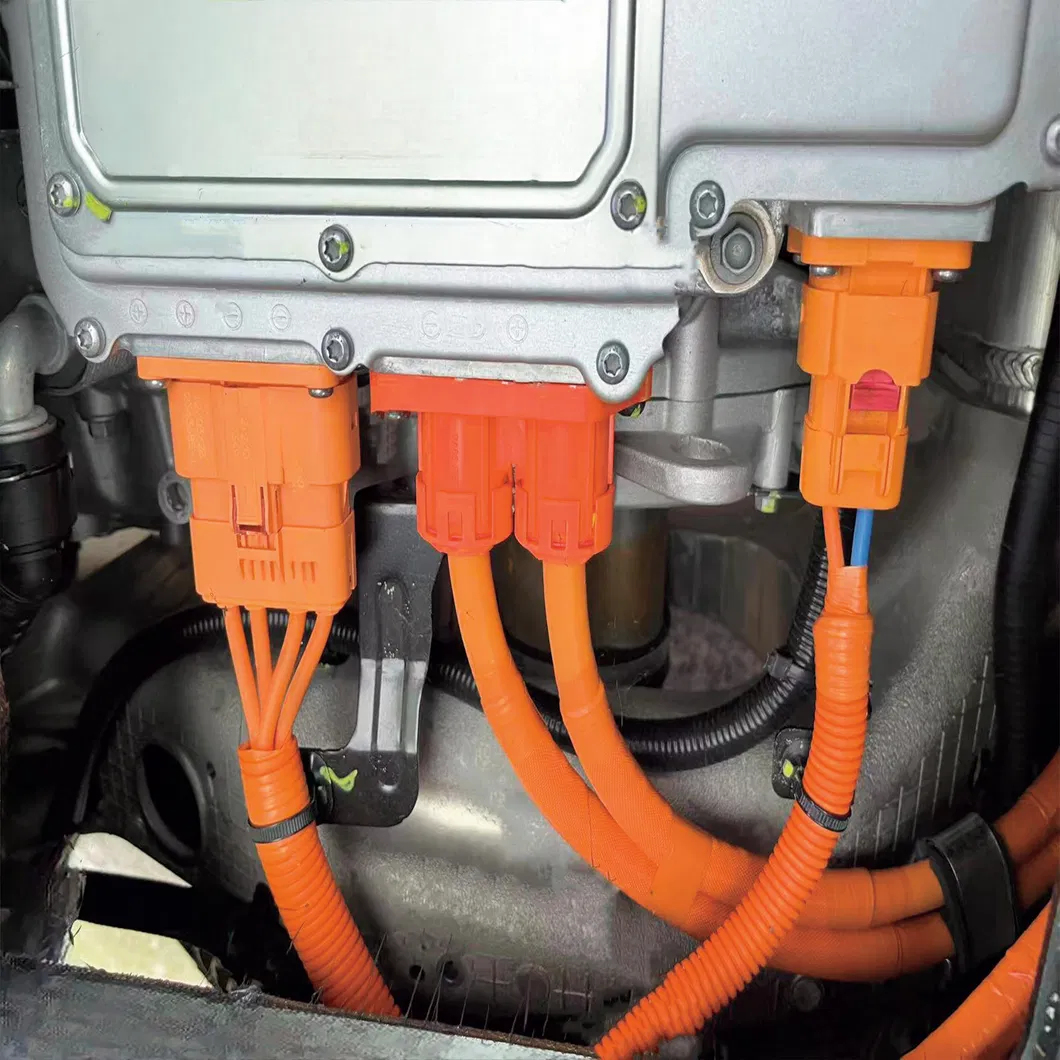

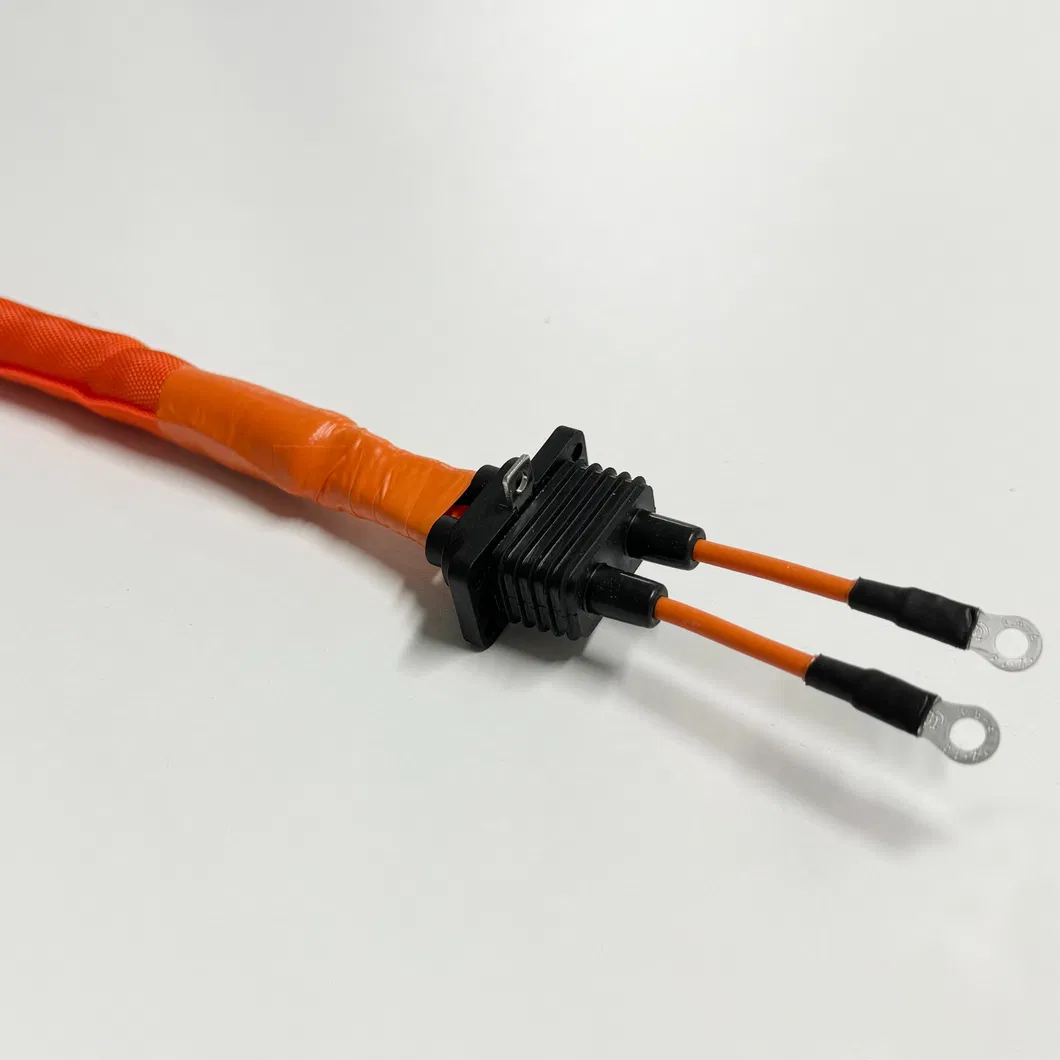

Application: LSW2102 is widely used for protecting high-voltage wiring harnesses and cables in automobiles.

-40~150ºC Temp Range
Tape-free Wrap
High-voltage Identification
Superior Wear/Abrasion Resistance
📊

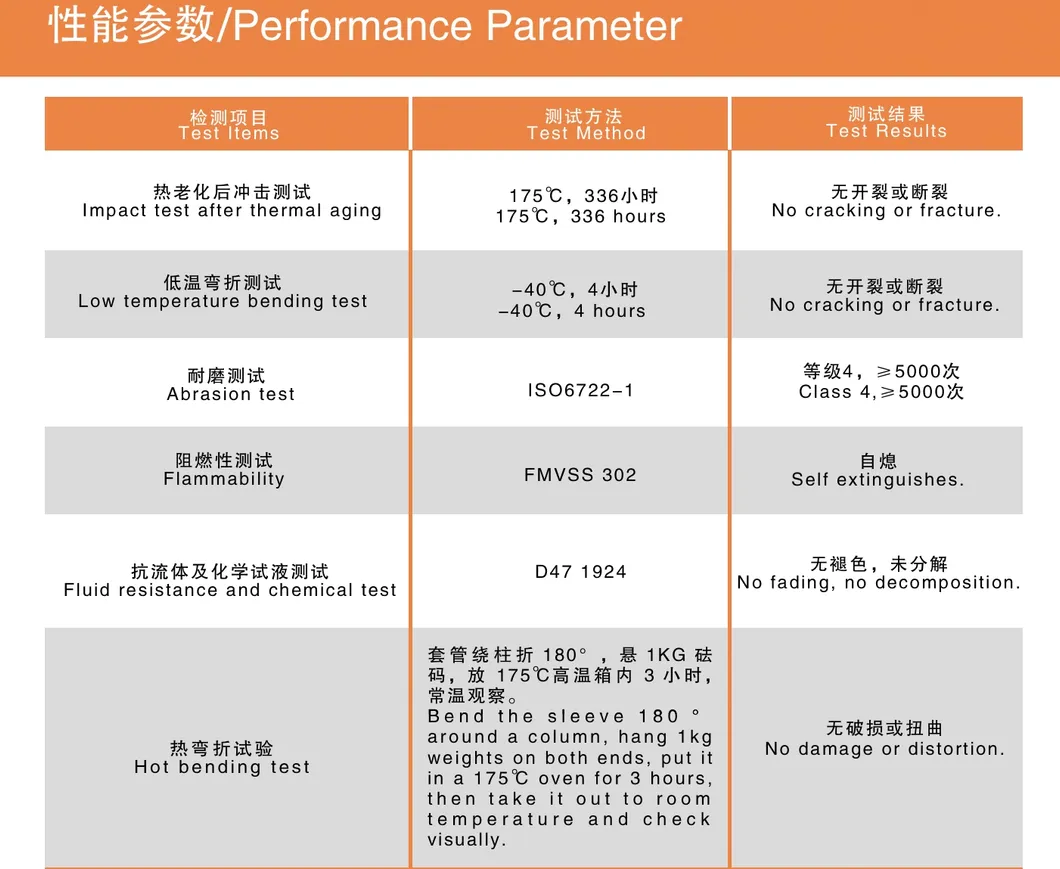

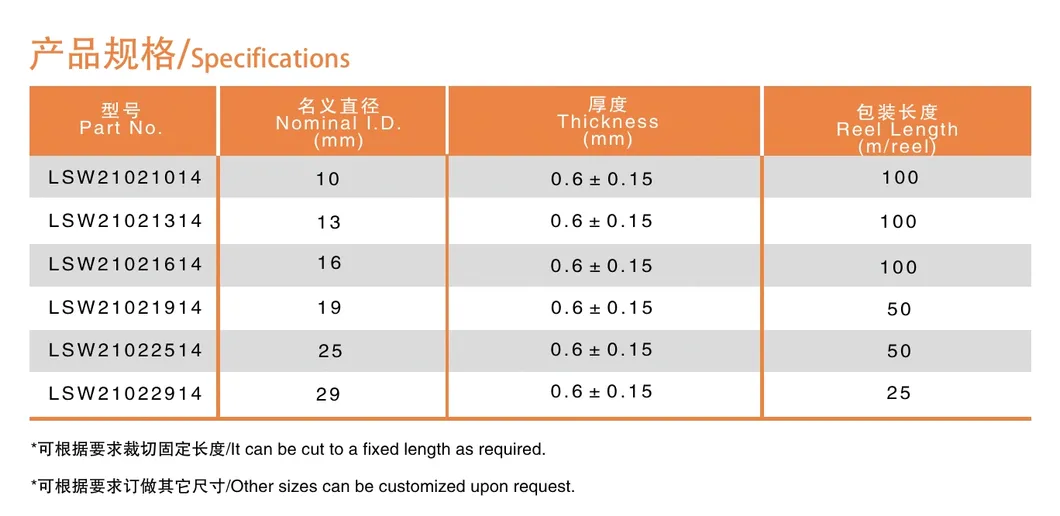

Specifications & Parameters

Frequently Asked Questions

What is the operating temperature range for LSW2102?
The LSW2102 wrap is designed to withstand extreme environments with an operating temperature range of -40ºC to 150ºC.
What materials are used in the construction of this wrap?
It is manufactured using high-quality polyester monofilaments and multifilaments, which are spun and coated with a specialized glue for durability.
Does this product require adhesive tape for installation?
No, the LSW2102 is a tape-free self-closing wrap, which simplifies the installation process and provides a clean finish.
What are the primary applications for this sleeving?
It is primarily used for the protection and high-voltage identification of wiring harnesses and cables in the automotive and rail industries.
What quality certifications does the manufacturer hold?
The production facility is certified under ISO 9001, IATF 16949, ISO 14001, and ISO 45001, ensuring the highest manufacturing standards.
Is the wrap resistant to wear and abrasion?
Yes, one of its main features is superior wear and abrasion resistance, making it ideal for protecting critical automotive components.
